The D740 reads 1D, 2D, OCR A & B fonts, OCR USC, OCR passport, OCR MICR (E13B) fonts, and DotCode, covering most travel identification documents, including passports, international IDs, and micro QR codes on drivers’ licenses. It is an excellent option for solutions requiring age verification and tracking cannabis, alcohol, or tobacco sales.
To enjoy optimal reliability and performance from the D740, users should check with their app provider to ensure they have upgraded to the latest version of CaptureSDK.
-
Multi-Device Compatibility
Apple® Certified for iOS devices (iPhone®, iPad®) and compatible with Android®, and Windows® 10.
-
Robust Scanning
Fast 1D/2D scanning for both printed and on-screen barcodes, featuring omnidirectional capability for intuitive, rapid scanning.
-
Ergonomic
Small, light, and fits perfectly in the hand for comfortable use over extended periods.
-
Durable Casing
Rubber material for increased protection from drops.
-
LED Aimer
Bright, rectangular illumination field with LED pointer for precise aiming.
-
Long-Lasting Battery
Features rechargeable and field-replaceable battery that lasts a full shift.
-

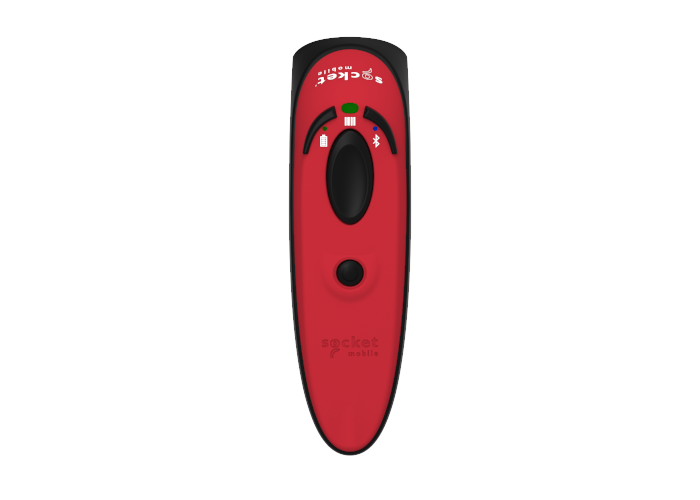

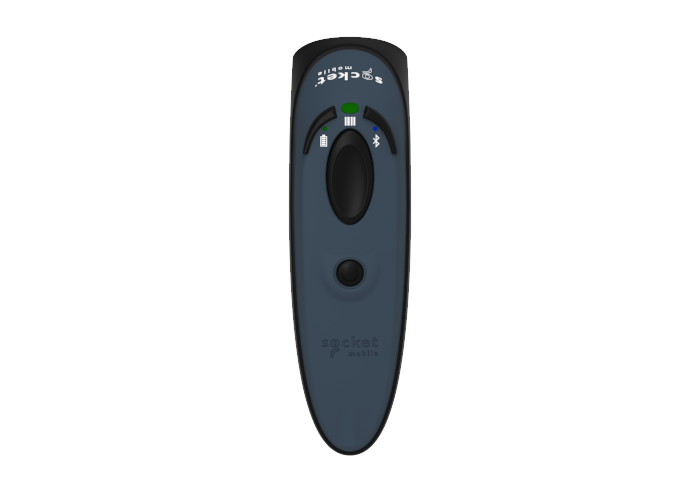

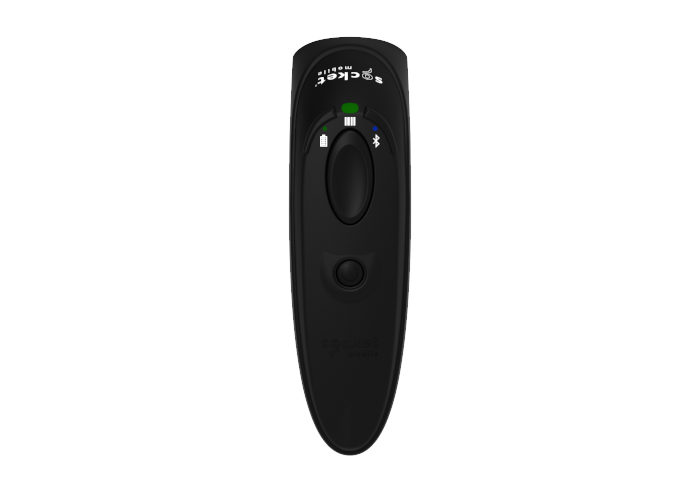

Intuitive User Indicators
LED lights that indicate successful scanning and battery charging status.
-
Bluetooth Wireless Integration
Dependable Bluetooth connection to host devices.
-
Audible Feedback
Multiple feedback tones to indicate successful scans/reads and other important action confirmations.
-
Easy App Integration
Socket Mobile's Capture SDK enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK.
-
Developer Support
Our support team is available to assist with set-up and operation.
-
1-Year Warranty Included
Extended warranty options also available.
-
Designed and Assembled in the USA
All socket mobile data readers are built at our headquarters in Fremont, CA.
-

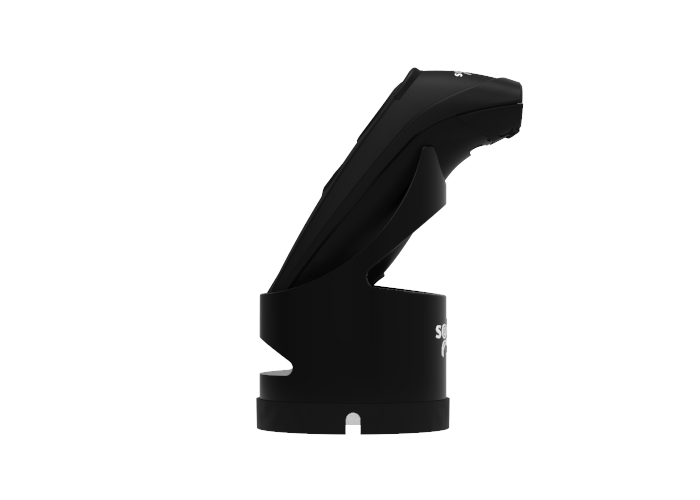

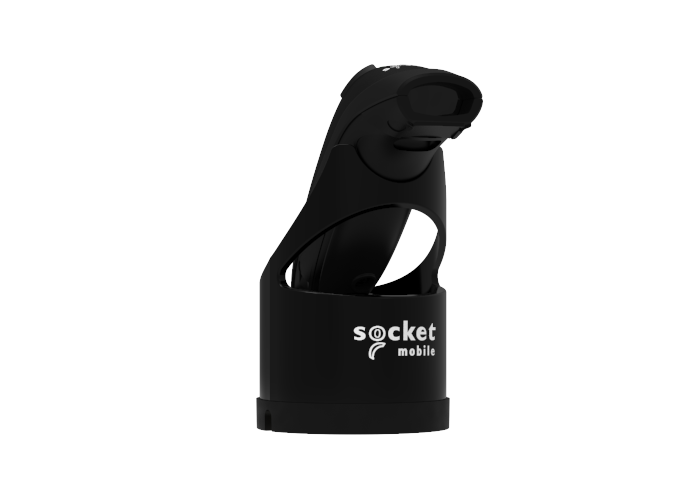

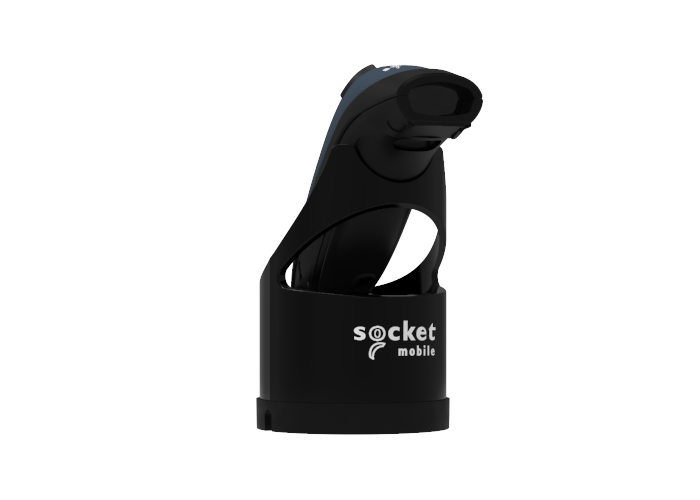

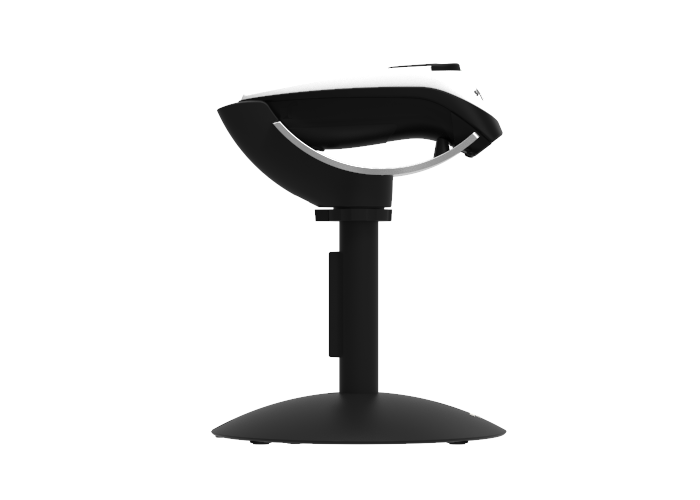

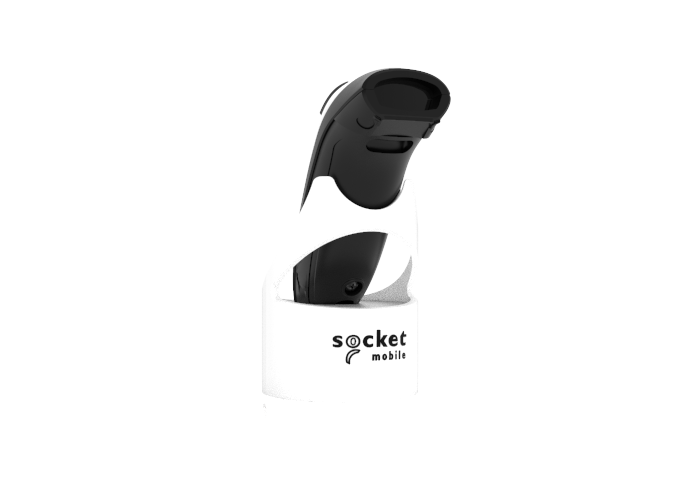

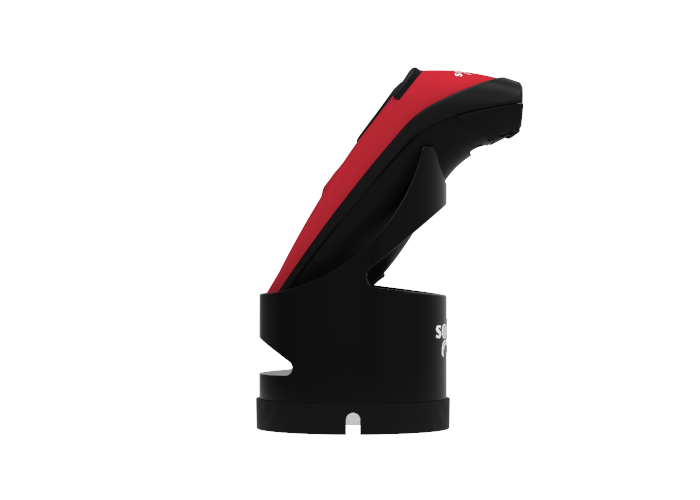

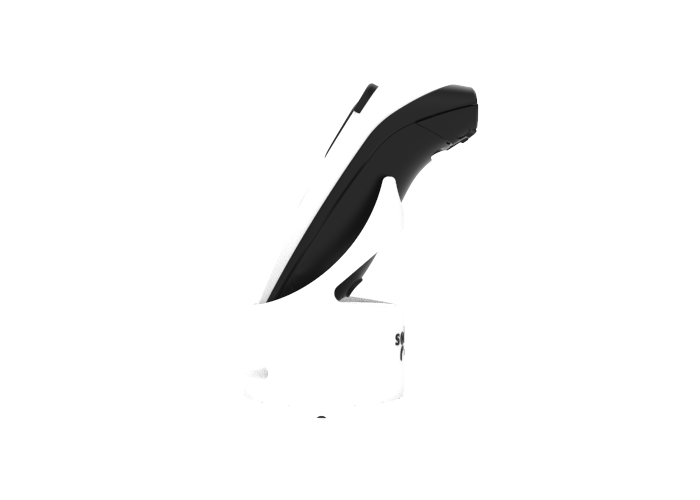

Hands-Free Scanning
Automatically scans barcodes when set to Auto (Presentation) Mode and positioned in a dock or stand.
| Default Barcode Symbologies |
|
||||||||||||||||||||||||
| Supported Barcode Symbologies |
Learn how to enable and disable data types. |
||||||||||||||||||||||||
| Reading Distance |
|
||||||||||||||||||||||||
| Decode Ranges | Reading Distance: 3.0 to 49.5 cm (1.2 to 19.5 in.) Depends on barcode size, symbology, label media
|
| Battery Type | 1 rechargeable Lithium Ion Polymer (replaceable battery) |
| Charge Time | 6 |
| Life of battery | 500 charge-discharge cycles |
| Life per full charge | Battery Friendly with standby time:
Active Scan Time:
|
| Battery weight | 35g |
| Percentage lithium | 26.5% |
| mAh | 1400 |
| Cells per battery | 1 |
| Watts per battery | 5.55 |
| Cell type | Proprietary |
| Chemical composition | Lithium - polymer |
| Lithium content | 9.32g |
| Voltage | 3.7v |
| Hazmat UN Number | UN3481, P.I. 967 |
| ROHS Compliance | Yes, Included with Scanner |
| Country of origin | China |
| Commodity code | 8507.60.0000 |
Some Operating Systems or smartphone/tablet models may support only one profile. |
|
|
Class 2 Bluetooth, version 2.1 + EDR (Enhanced Data Rates) with 56-bit data encryption |
|
|
Up to 10 meters (33 ft.), depending on the environment. The range limit is usually due to the Host Device (phone, tablet, or notebook). |
- Data Reader
- Charging Cable
- Get Started Guide
|
From 0 to 100 000 lux. From pitch black to direct sunlight. |
|
|
Charging in an ambient temperature above 40° C / 100° F may result in charging issues. |
|
|
Six drops onto concrete - one on each side at 6.6 ft. (2 m) |
|
|
0° to 45° C (32° to 113° F) |
|
|
95% at 60° C (140° F) (non-condensing) |
|
|
-40° to 70° C (-40° to 158° F) |
|
|
2,500 cycles at 3.3 ft. (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32 3. |
Bluetooth SIG:
- Declaration ID: D030473
- QD ID: 82009
Electrical Safety:
- Certified to IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2
Environmental:
- RoHS EN 50581
EMI / RFI:
- FCC Part 15 Class C, RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
- TELEC: R 201-125799
- FCC ID: T9J-RN42
- IC ID: 6514-RN42
LED Safety:
- IEC 62471
- EN 62471 (EXEMPT GROUP)
